Custom Color Air Cleaner Cabinets
Custom Color Air Cleaner Cabinets
Media Air Cleaner
Custom Color Air Cleaner CabinetsMedia Air Cleaner

Highlights of the Custom Color Media Air Cleaners

    • EASY INSTALLATION: Installs into ducted central heating and air conditioning systems
    • HIGH EFFICIENCY: MERV 8 filter traps particles as small as 1.0 micron including pollen, dust, mold, and dander
    • CUSTOMIZATION: Custom OEM colors
    • CERTIFIED: Meets ANSI/ASHRAE 52.2 Standards

Features of the Custom Color Media Air Cleaner Cabinets

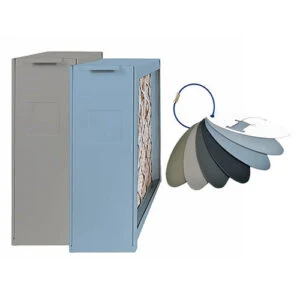

Our Custom Color Air Cleaner Cabinets are painted to match your OEM equipment. You cam even opt for private labeling if you desire that extra touch of personalization. Custom OEM colors include:

  • Equipment Grey (Duncane, Carrier, Rheem)
  • Appliance Matte Grey (Armstrong, Daikin)
  • Goodman Grey (Amana)
  • Trane Green
  • Bryant Tan
  • Universal White
  • York Champagne (Luxaire, Coleman)

Durability

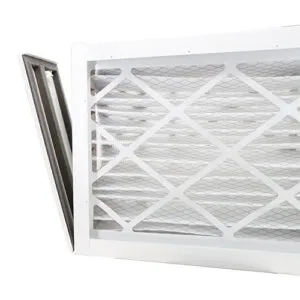

Our Media Air Cleaners boast top-notch quality, featuring power-coated metal cabinets that are both durable and visually appealing. With our HeavySeal™ design, you’ll enjoy an airtight seal, ensuring no leakage around the filter or through the ductwork.

Our air filtering cabinets come with a choice of high-efficiency MERV 8 or MERV 11 media filters. These filters are designed with depth loading technology, capturing larger particles on the surface and trapping smaller ones deeper within the media.

What is MERV?

MERV stands for Minimum Efficiency Reporting Value,and it’s a rating system that tells you how well a filter performs when dealing with particles ranging from 0.3 to 10 microns. With a scale from 1 to 16, higher MERV ratings mean greater particle capture on each pass. For instance, a MERV 16 filter can snag over 95% of particles across the full size range.

Compliance

Rest assured, out Media Air Cleaner cabinets meets ANSI/ASHRAE 52.2 standards. It’s designed to fit snugly into your return air duct, just before your furnace and air handler. As air flows through your system, our media air cleaner works diligently to trap airborne particles within its filter media. Unlike conventional filter, our cabinets can capture up to 100 times more contaminants while maintaining efficiency and arrestance ratings that comply with ASHRAE standard 52.2.

Indoor air is filled with particulates, gases and germs that can cause illness and aggravate asthma and other respiratory problems. The Healthy Home System® is a whole-home indoor air quality solution that leaves air CLEAN, PURE, and FRESH™ by addressing the three main allergy triggers. What’s more, the Healthy Home System® keeps any HVAC system running at top efficiency, which means less maintenance and reduced energy costs.

The Custom Color Media Air Cleaners should be installed by a licensed contractor. Find a contractor in your area.

Specifications of the Custom Color Media Air Cleaners

PART # MODEL DESCRIPTION DIMENSIONS (ins.) MEDIA SIZE (ins.)
A B C DUCT OPENING
D E
46650200 FC2025-LMCC Custom Color 20 x 25 Filter Cabinet 7.12 24.37 21.37 21.43 19.37 20 x 25 x 5
46650300 FC1625-LMCC Custom Color 16 x 25 Filter Cabinet 7.12 24.37 17.37 21.50 15.37 16 x 25 x 5
46650400 FC2020-LMCC Custom Color 20 x 20 Filter Cabinet 7.12 24.37 21.37 21.43 19.37 20 x 20 x 5
46650600 HW2025-LMCC Custom Color Honeywell 20 x 25 Filter Cabinet 7.12 24.37 21.37 21.43 19.37 20 x 25 x 4.37
46650700 HW1625-LMCC Custom Color Honeywell 16 x 25 Filter Cabinet 7.12 24.37 17.37 21.50 15.37 16 x 25 x 4.37
46650800 HW2020-LMCC Custom Color Honeywell 20 x 20 Filter Cabinet 7.12 24.37 21.37 21.43 19.37 20 x 20 x 4.37
46650900 HW1620-LMCC Custom Color Honeywell 16 x 20 Filter Cabinet




16 x 20 x 4.37
46690000 HW2520-LMCC Custom Color Honeywell 25 x 20 Filter Cabinet




25 x 20 x 4.37
46660001 FC2025-LMCC3.75 Custom Color 20 x 25 Filter Cabinet Accepting Trio 3.75inch Wide Media




20 x 25 x 3.75
46660101 FC1625-LMCC3.75 Custom Color 16 x 25 Filter Cabinet Accepting Trio 3.75inch Wide Media




16 x 25 x 3.75
46660201 FC1625T-LMCC Custom Color 16 x 25 x 4-3/8W Filter Cabinet accepting Twiggy




16 x 25 x 3
46660301 FCRA2025-LMCC Custom Color Right Angle Heavy Gauge Air Cleaner Cabinet Accepting 20 x 25 x 5 Media




20 x 25 x 5
46646300 TrioMAC8-2025 Custom Color Trio Media Air Cleaner 20 x 25 Media




15.5 x 24.5 x 3.75
46646700 TrioMAC11-1625 Custom Color Trio Media Air Cleaner 16 x 25 Media




19.5 x 24.5 x 3.75
