PV Power Venter PVE Models

Indoor Mounted PVE Power Venters for Oil and Gas Appliances

PVE Power Venters are used for used primarily with a single 120VAC controlled oil or gas fired furnace, boiler, or water heater. The PVE may be used to common vent multiple appliances with the addition of a Control Kit.

Components needed for typical venting system install include one PVE Series Power Venter; one SWH-1 Series Sidewall Vent Hood (Not included), and one CK Series Control Kit (Not included).

Specifications

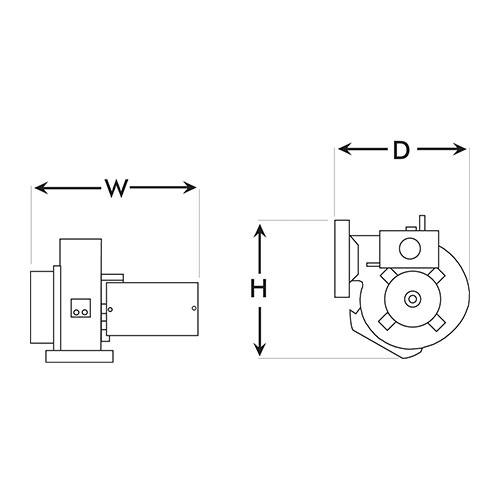

PART # MODEL H
(height)
W
(width)
D
(depth)
Inlet / Outlet VOLTAGE HZ AMPS WATTS RPM THERMAL PROTECTION
46124100 PVE-1200 13¾ 11½ 13½ 8 115 60 3,9 186 1750 Yes
